NMS-UQ7-IMX8MM
Usage System on Module NMS-UQ7-IMX8MM in the Qseven form-factor based on the NXP i.MX8M mini applications processor can be used in portable and...

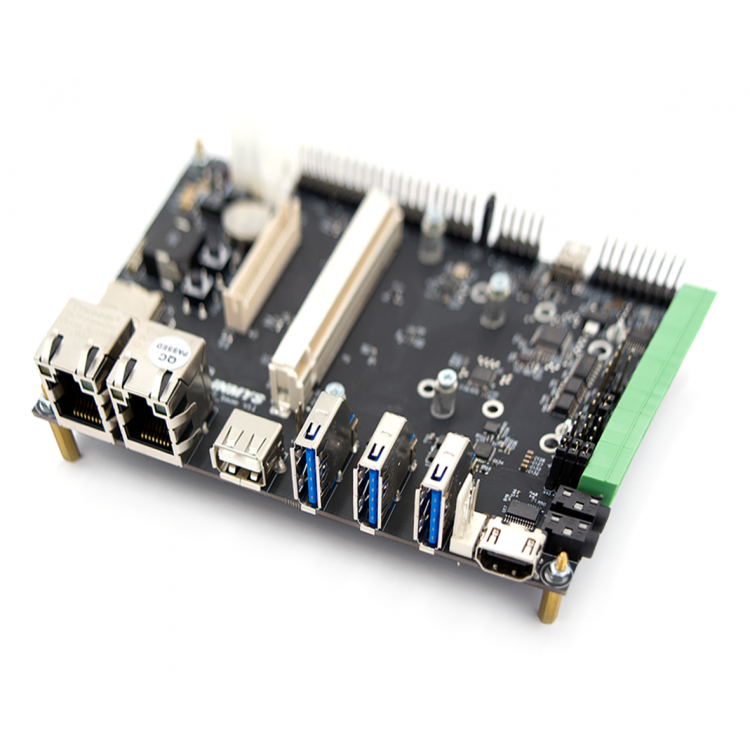

This board implement the routing of the interface signals Qseven module to external standard connectors.
All connections with the external world come through this motherboard, which provide also the required voltage to modules, deriving it from its power supply source.
Video |
Interface |
HDMI |
Resolution |
up to 4k@60Hz |
|
Storage |
1 x S-ATA channel |
M.2 connector |
USB |
USB 3.0 |
3x |
USB 2.0 |
1x |
|
mini USB |
USB to UART console |
|
Networking |
Gigabit Ethernet |
from Q7 SOM Ethernet PHY |
Gigabit Ethernet |
from onboard Intel WGI210ITSLJX PCIe Gigabit Ethernet PHY |
|
Audio |
Line in\Mic in |
3.5 mm jack |
Line out\Headphones |
3.5 mm jack |
|
PCI Express |
PCIe 1x |
M.2 connector |
PCIe 1x |
routed to Intel WGI210ITSLJX PCIe Gigabit Ethernet PHY |
|
Serial Ports |
1 x Serial port |
RS-232 or RS-485 or RS-422 |
1 x Debug console |
UART to USB |
|
I/O interfaces |
CAN |
1x |
I2C |
2x |
|
SPI |
1x |
|
LCP |
8x GPIO |
|
Power |
Power Supply voltage |
+12 VDC |
Consumption |
TBD |
|
Temperature |
Operating |
-40°C…+85°C |
Storage |
-40°C…+85°C |
|
