NMS-EVM-Q7-BASE
Specifications Video Interface HDMI Resolution up to 4k@60Hz Storage 1 x S-ATA channel M.2 connector USB USB 3.0 3x USB 2.0...

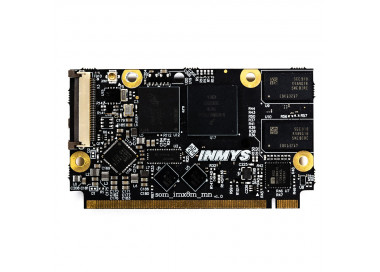

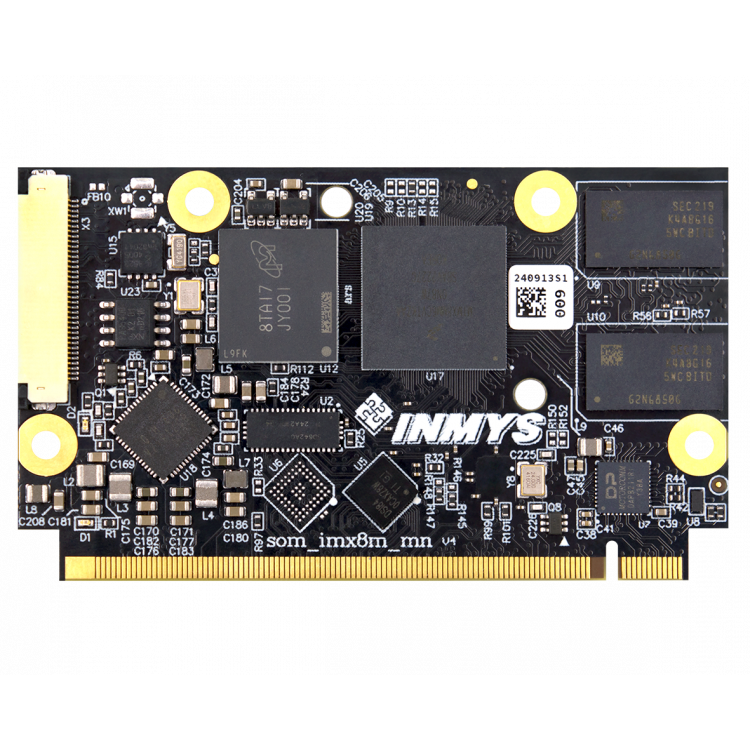

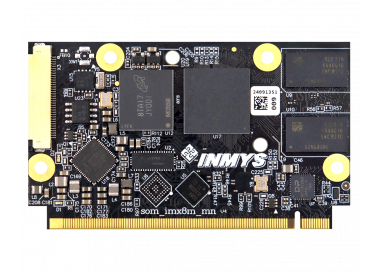

System on Module NMS-UQ7-IMX8MM in the µQseven form factor based on the NXP i.MX8M mini applications processor.
System on Module NMS-UQ7-IMX8MM in the Qseven form-factor based on the NXP i.MX8M mini applications processor can be used in portable and mobile devices thanks to a powerful processor, a wide range of communication interfaces, high performance, moderate power consumption and small size. PCI Express bus allows you to use SOM for systems with the transfer of large amounts of data between devices. Dual LVDS, eDP and CSI allows you to connect a variety of LCD displays and sensors.
NMS-UQ7-IMX8MM is equipped with 8GB eMMC flash, 1GB DDR4 RAM, 128Mb bootable flash memory, Gigabit Ethernet, dual video LVDS and eDp switch for LCD displays with 1920 x 1080 pixels, built-in WIFI module and FPC connector with MIPI-CSI interface.
Mechanic |
Form factor |
µQseven |
Size (LхW) |
70х40 mm |
|
Platfrom |
CPU |
NXP i.MX 8M Mini |
Frequency |
1.6 GHz |
|
Core |
4x ARM Cortex A53@ 1.6 ГГц |
|
Core |
1x ARM Cortex M4@ 400 МГц |
|
Power consumption |
5 W |
|
Device fabrication |
14LPC FinFET |
|
L1-cache |
32 KB |
|
L2-cache |
512 KB |
|
Memory |
Type |
DDR4 |
Speed |
2400 Mbit/s |
|
Size |
512/1024/2048 MB |
|
Bus |
32 bit |
|
Storage |
Type |
eMMC Flash |
Size |
8/16/32/64/128 GBytes |
|
Bootable Memory |
Type |
NOR Flash |
Size |
16 MB |
|
Interface |
QSPI |
|
Graphics |
GPU |
2D Vivante GC320 + 3D GCNanoUltra |
OpenGL ES 2.0 |
Support |
|
OpenVG 1.1 |
Support |
|
Video |
Size |
1920 x 1080p |
Interface |
Dual LVDS or eDP |
|
Audio |
Interface |
I2S |
Ethernet |
Gigabit Ethernet |
optional |
WiFi |
802.11 a/b/g/n/ac |
optional |
I/O Interfaces |
I2C + SMBus |
2 |
SPI |
1 |
|
Boot SPI |
1 |
|
USB 2.0 |
4+1(OTG) |
|
UART |
1+1(DEBUG) |
|
GPIO |
8 |
|
Connectors |
FPC camera |
1xCSI lane |
WIFI |
U.FL |
|
Power |
Power supply |
5V |
Power Consumption, max. |
5W |
|
Power Consumption, typ. |
TBD |
|
Temperature |
Operating |
-40º – +85ºC |
Storage |
-40º – +85ºC |
|
Humidity |
Operating |
Operating: 10 - 90% r. H. non cond |
Storage |
5 - 95% r. H. non cond. |
The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application.
Data sheet
