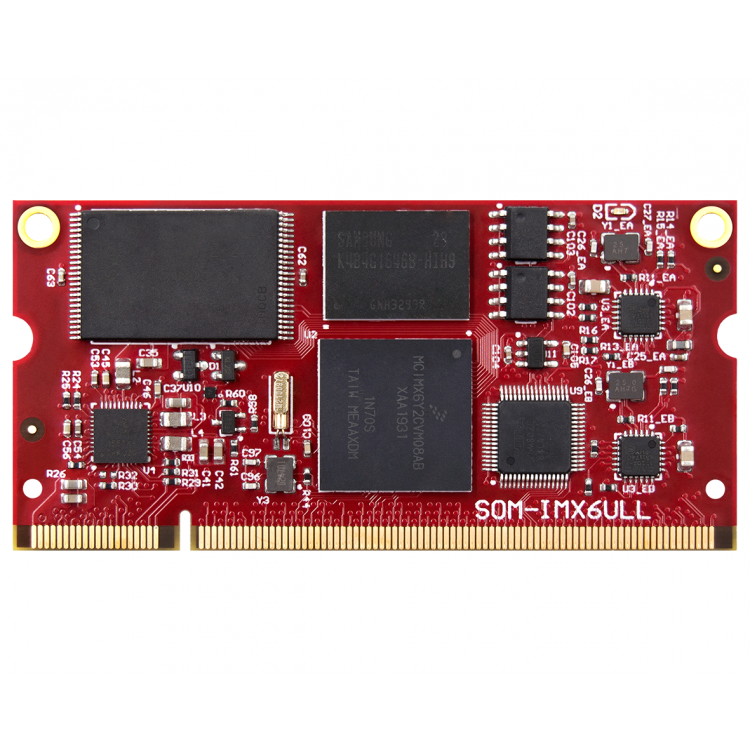

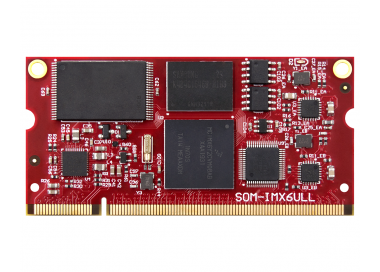

The NMS-SDM-IMX6ULL module is based on NXP i.MX.6ULL operates at frequencies up to 800MHz.
Module can be equipped with up to 512GB of DDR3 RAM, and eMMC memory with total capacity up to 16GB.

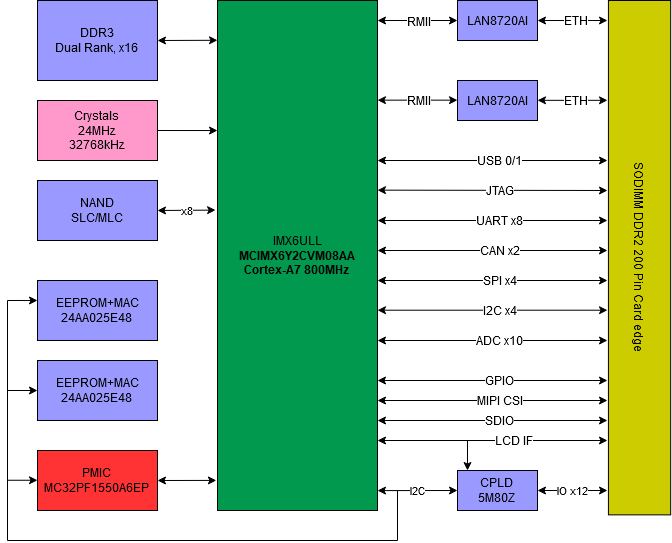

The NMS-SDM-IMX6ULL is aimed for data collecting systems through various peripheral interfaces with further transmission over Ethernet networks. Two Ethernet interfaces makes it possible, to use module as a router or a switch, easily integrated into the network infrastructure. Parallel in/out interfaces can be used for camera and display connection, combined with low power consumption and heat release, module can be used in portable devices (such as remote controllers, tablets, automated workstations). The presence of Linux for this module makes it easy to use open source software and an extensive user community for quick software adaptation.
Mechanic |
Form factor |
SODIMM DDR2 |
Size (LхH) |
67.6х33.2 mm |
|
Platfrom |
CPU |
NXP i.MX 6ULL |
Frequency |
792MHz default / 800MHz max |
|
Architecture |
Arm Cortex-A7 |
|
Memory |
Type |
DDR3 |
Size |
128/256/512 MB |
|
EEPROM |
Size |
4 KB |
eMMC |
Size |
4/8/16 GB |
Multimedia |
Display |
1x TTL (24 bpp) |
Camera |
1x Parallel CSI |
|
Camera |
WXGA/HD (1366/768) |
|
Ethernet |
Controller |
Internal |
10/100 Mbit/s |
2 |
|
I/O Interfaces |
USB OTG 2.0 |
2 |
SD/SDIO/MMC interface |
2 |
|
CAN |
2x CAN 2.0B |
|
GPIO |
Yes |
|
I2C |
4 |
|
SPI/SSP |
4 |
|
UART |
8 |
|
Peripherals |
ADC |
2x 10ch |
PWM |
8 |
|
Others |
JTAG |
Muxed |
RTC |
Yes |
|
Security Accelerators |
Secure Boot |
|
Tamper Protection |
Yes |
|
Connectors |
SODIMM DDR2 |
1 |
pins |
200 |
|
Power |
Voltage |
3.3V |
Power Consumption, max. |
0.763 W |
|
Power Consumption, typ. |
0.371 W |
|
Temperature |
Operating Temperature |
-40º – +85ºC |
Storage Temperature |
-40º – +85ºC |
|
Humidity |
Operating |
up to 95% at 40° C |
Storage |
up to 95% at 40° C |
|
