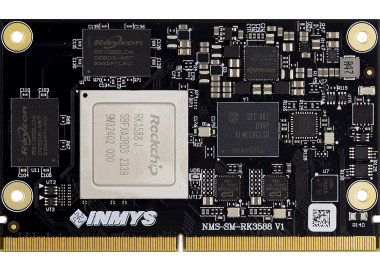

![NMS-SM-RK3588 NMS-SM-RK3588](https://inmys.ru/129-large_default/NMS-SM-RK3588.jpg)
NMS-SM-EVM
Specifications Audio & Video HDMI 1x MIPI DSI 2x (+ 2x I2C_DSI) MIPI CSI 1x I2S 1x DP 1x Storage 1 x S-ATA канал...
The NMS-SM-RK3568 processor module is based on 64-bit processor RK3588, which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. Having different video input and output interfaces, it is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway and industrial control.
Mechanic |
Form factor |
Edge connector according to SMARC |
Dimensions (LхH) |
82×50 mm |
|
Platfrom |
Processor |
RockChip RK3588 |
GPU |
Arm Mali “Odin” MP4 |
|
NPU |
6 TOPS NPU 3.0 with support for INT8/16, FP16/BFP16, TensorFlow, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
|
Core |
Arm Mali-G610 MP4 “Odin” GPU with support for OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
|
L1-cache (instruction/data) |
64 KB/32 KB, 64 KB/32 KB |
|
L2-cache |
2 MB , 512 KB |
|
L3-cache |
3 KB |
|
RAM |
Type |
LPDDR4x |
Size |
2/4/8/16/32 GB |
|
Bus |
2 channels x32 bit |
|
ECC support |
Yes |
|
EEPROM |
Size |
2 x 2 Кbit |
Interface |
I2C |
|
Unique ID |
EUI-48 |
|
MMC |
Size |
eMMC 5.1/5.0/4.51, HS400, HS200, DDR50. Size 16GB/32GB/64GB and more |
Multimedia |
Supported codecs |
Video decoding 8Kp60 H.265, VP9, AVS2, Video encoding 8Kp30 H.264 AVC / MVC, 4Kp60 AV1, 1080p60 MPEG-2 / -1, VC-1, VP8, decoder 8Kp30 real-time video decoder of H.265 / H.264 |
Camera |
MIPI-CSI interface 0: 1х2 lanes MIPI-CSI interface 1: 4x lanes or 2x2 lanes Integrated ISP |
|
Display |
1x HDMI 2.1 up 7680x4320@60Hz, 2x LVDS 18/24 bit. 1920x1200@60Hz 1x DP 4096x2304@60Hz |
|
Ethernet |
1 Gb |
2 |
BUSes |
CAN |
2 |
I2S |
1 |
|
PCIe 3.0 (1x4, 2x2 or 4x1) |
2 |
|
UART |
4 |
|
SDIO |
1 |
|
LVDS |
2 |
|
I2C |
4 |
|
SPI |
2 |
|
HDMI |
1 |
|
DP |
1 |
|
SATA |
1 |
|
PWM |
2 |
|
GPIO |
13 |
|
I/O Interfaces |
USB 2.0 |
2 HOST |
USB 3.0 / USB 2.0 |
2 OTG |
|
Power |
Voltage |
5V |
Power Consumption, max. |
5W |
|
Power Consumption, typ. |
Depends on the usage |
|
Exploitation |
Operating Temperature |
-40º – +85ºC |
Storage Temperature |
-40º – +85ºC |
|
Humidity operating |
Not more than 95% at 40°C |
|
Humidity storage |
Not more than 95% at 60°C |
|
INMYS WIKI |
NMS-SM-RK3588-4-64AI1 | 4 GBytes LPDDR4 RAM, 64 GBytes eMMC ROM, 2 Gigabit Ethernet, Industrial |
NMS-SM-RK3588-8-64AI1 | 8 GBytes LPDDR4 RAM, 64 GBytes eMMC ROM, 2 Gigabit Ethernet, Industrial |
Data sheet
Specifications Audio & Video HDMI 1x MIPI DSI 2x (+ 2x I2C_DSI) MIPI CSI 1x I2S 1x DP 1x Storage 1 x S-ATA канал...
