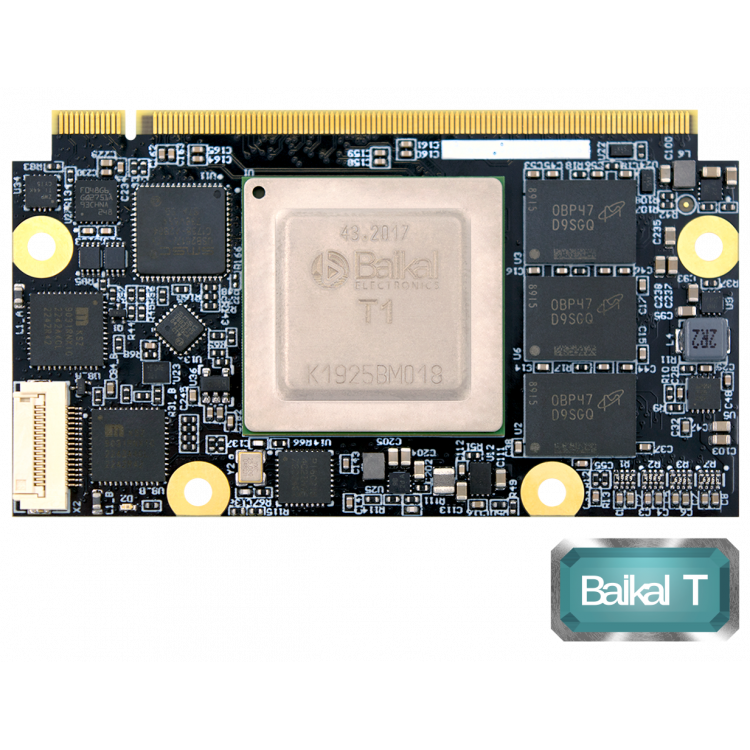

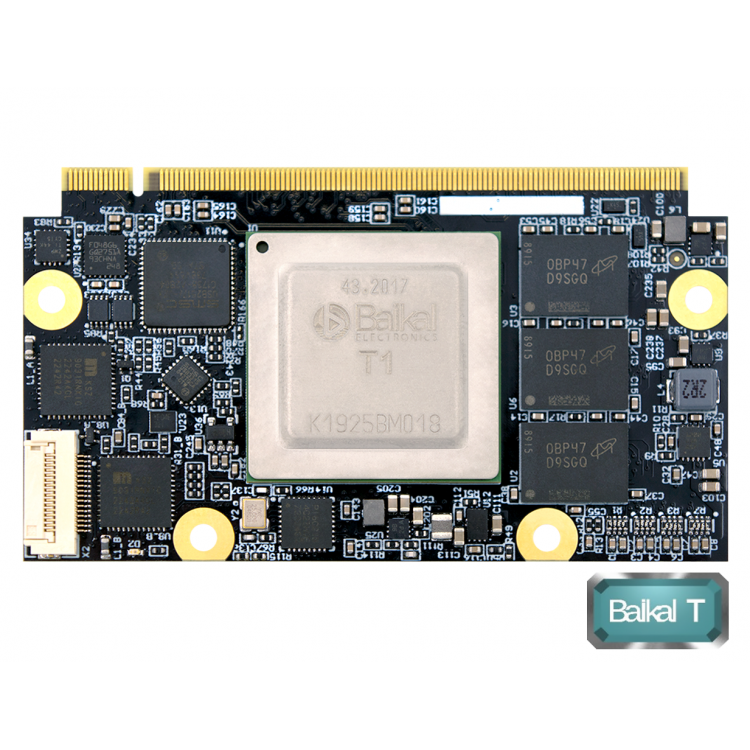

NMS-uQ7-BKLT is a System On Module, based on Baikal T1000 processor, come in useful in systems that require a wide range of communication interfaces, high performance, rapid access to ECC memory, a high-bandwidth disk subsystem, dedicated DMA channels for each interface.
The Baikal-T1000 processor does not have a built-in video card, 10Gbit/s Ethernet connection output to dedicated pins on Qseven connector According to the standard, there can be only one 1Gbit/s ethernet on Qseven connector. The Baikal-T1000 processor has two 1Gbit/s ethernet ports, so the second one is derived in FPC connector. The maximum amount of bootable NOR-flash memory in the Baikal T1000 processor is limited to 16 MB.
Mechanic |
Form factor |
µQseven |
Size (LхW) |
70х40 мм |
|
Platfrom |
CPU |
Baikal T1000 |
Frequency |
1.2 GHz |
|
Core |
2xMIPS32 |
|
Power consumption |
5W |
|
Device fabrication |
28nm |
|
L2-cache |
1 MB |
|
Memory |
Type |
DDR3 |
ECC support |
Yes |
|
Size |
2 GB |
|
Bootable Memory |
Type |
NOR Flash |
Size |
16 MB |
|
Interface |
SPI |
|
Quantity |
2 |
|
Storage |
Type |
SLC NAND |
Size |
256/512/1024 МБ |
|
Interface |
SPI |
|
Graphics |
Видеокарта |
No |
Ethernet |
Controller |
CPU Internal |
10/100/1000 Mbit/s |
2x |
|
10/100/1000/10000 Mbit/s |
1x |
|
I/O Interfaces |
I2C |
2 |
SPI |
1 |
|
Boot SPI |
1 |
|
SATA Gen3.0 up to 6Gbit/s |
2 |
|
USB 2.0 |
6 |
|
UART |
2 |
|
GPIO |
7 |
|
Connectors |
Qseven connector |
1 |
FPC ethernet connector |
1 |
|
Power |
Voltage |
5V |
Power Consumption, max. |
7W |
|
Power Consumption, typ. |
5W |
|
Temperature |
Operating Temperature |
0º – 70ºC |
Storage Temperature |
-40º – +85ºC |
|
Humidity |
Operating |
Operating: 10 - 90% r. H. non cond |
Storage |
Storage: 5 - 95% r. H. non cond. |
|
INMYS WIKI |
Data sheet
