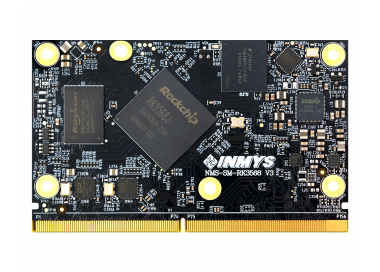

The NMS-SM-RK3568 processor module is based on 64-bit processor RK3568, which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. Having different video input and output interfaces, it is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway and industrial control.
|
Mechanic |
Form factor |
Edge connector according to SMARC |
|
Dimensions (LхH) |
82×50 mm |
|
|
Platfrom |
Processor |
RockChip RK3568 |
|
GPU |
Mali-G52 EE |
|
|
NPU |
0.8Tops@INT8 |
|
|
Core |
4x ARM Cortex A55 frequency up to 2.0 GHz |
|
|
L1-cache (instruction/data) |
32 KB/32 KB |
|
|
L3-cache |
512 KB |
|
|
RAM |
Type |
LPDDR4 |
|
Size |
2/4/8 GB |
|
|
Bus |
32 bit |
|
|
ECC support |
Yes |
|
|
EEPROM |
Size |
2 Kb |
|
Interface |
I2C |
|
|
Unique ID |
EUI-48 |
|
|
MMC |
Size |
16 GB |
|
Multimedia |
Supported codecs |
1080p60 H265,VP9 decoder, H.265/H.264, 8M ISP, HDR coder,1080p60 H.264, |
|
Camera |
4-lane MIPI-CSI Interface |
|
|
Display |
4-lane MIPI-DSI Interface |
|
|
Ethernet |
1 Gb |
2 |
|
BUSes |
CAN |
2 |
|
I2S |
1 |
|
|
PCIe 2.1 |
1 |
|
|
PCIe 3.0 |
2 |
|
|
UART |
3 + DEBUG |
|
|
SDIO |
1 |
|
|
MIPI DSI or LVDS |
1 |
|
|
I2C |
3 |
|
|
SPI |
2 |
|
|
HDMI |
1 |
|
|
eDP |
1 |
|
|
SATA |
1 (mux) |
|
|
PWM |
2 |
|
|
GPIO |
20 |
|
|
I/O Interfaces |
USB 2.0 |
2 + 1 |
|
USB 3.0 |
1 OTG + 1 (mux) |
|
|
Power |
Voltage |
5V |
|
Power Consumption, max. |
5W |
|
|
Power Consumption, typ. |
Depends on the usage |
|
|
Exploitation |
Operating Temperature |
-40º – +85ºC |
|
Storage Temperature |
-40º – +85ºC |
|
|
Humidity operating |
Not more than 95% at 40°C |
|
|
Humidity storage |
Not more than 95% at 60°C |
|
|
INMYS WIKI |
| NMS-SM-RK3568-2-16AI3 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 2 Gigabit Ethernet, Industrial |
| NMS-SM-RK3568-2-16AC3 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, 2 Gigabit Ethernet, Commercial |
Data sheet
