Key features:

  • Form-factor CM3,  67.5×31 mm
  • Quad-core ARM Cortex-A53 64-bit processor, frequency up to 1.5GHz
  • Mali-450 MP2 @ 500MHz
  • Supports video 4K 60fps H.265/H.264/VP9 decoding, 1080P 60fps H.265/H.264 encoding
  • RAM 2GB/4GB/8GB DDR4 16Bit, frequency up to 1600MHz
  • Storage 4GB eMMC
  • 1x 10/100M ETH
  • 1x USB2.0 HOST
  • 1x USB2.0 OTG
  • 1x USB3.0
  • 1x HDMI2.0, 4K@60fps
  • Audio, video
  • 2x UART+1x debug console
  • Other interfaces: I2C, SPI, SDMMC
  • 10х GPIO
  • Low power consumption
NMS-CM3-RK3328

Usage

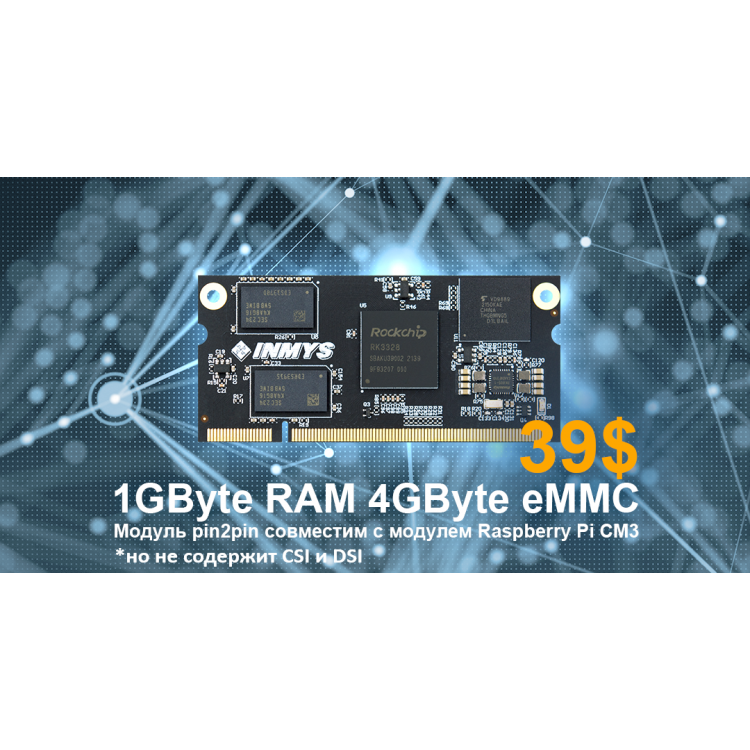

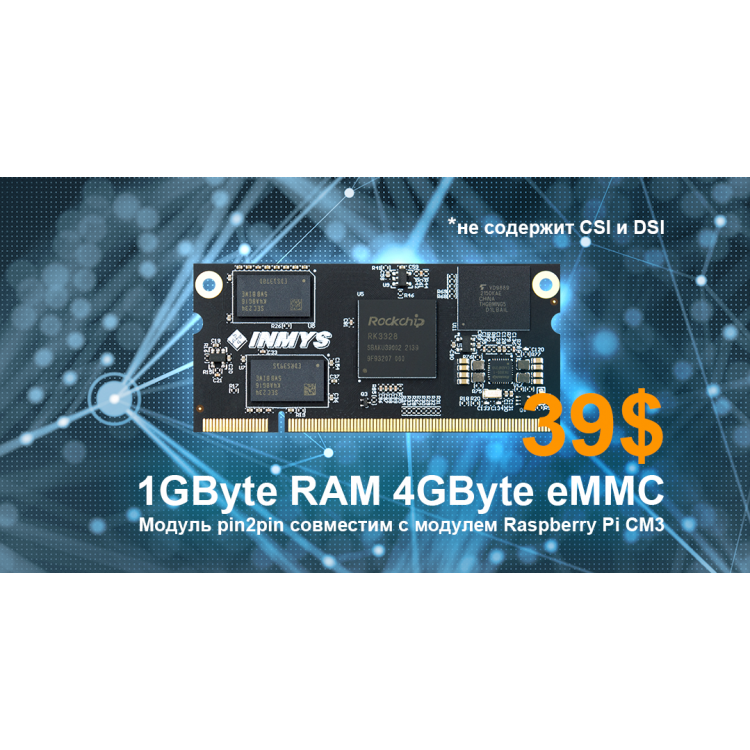

The SOM module NMS-CM3-RK3328 is based on the Rockchip RK3328 processor - a low-power high-performance 4-core processor with a frequency of 1.5 GHz and architecture of 4x ARM Cortex-A53 1.5 GHz GPU Mali 450MP and RAM up to 8 GB.

The module can be used in OTTBOX and IPTV digital media devices.

Specifications

Mechanic

Form factor

Compute Module 3 (CM3) with edge SO-DIMM connector

Dimensions (LхH)

67.5×31 mm

Platfrom

Processor

RockChip RK3328

GPU

Mali-450 MP2 @ 500MHz

NPU

Computing power up to 2.8 TOPS , peak up to 5.6Tops , 9.3Tops/W ultra-high efficiency

Support PLAI ( PyTorch ) and MDK ( Caffe) model training tools

Follow-up support TensorFlow

Support Image Classification Model VGG-16(GNet1), GNet18 and Gnetfc

Support Target Detection Model: SSD ( Based on VGG )

Core

Quad-core ARM Cortex-A53 64-bit processor, frequency up to 1.5GHz

VPU

Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265) 1080P video œding, support H.264/H.265

Video postprocessor: de-interlacing, denoising, edge / detail / color optimization

RAM

Type

DDR4

Size

2/4/8 GB

Bus

16 bit

ECC support

No

MMC

Size

4 GB

BUSes

Ethernet 100M

1

I2S

1

UART

2 + DEBUG

HDMI 2.0

1

SDMMC 2.0

2

I2C

2

SPI

1

Audio codec

1

GPIO

10

I/O Interfaces

USB 2.0 HOST

1

USB 2.0 OTG

1

USB 3.0

1

Power

Voltage

5V

Power Consumption, max.

5W

Power Consumption, typ.

Depends on the usage

Exploitation

Operating Temperature

0º – 70ºC

Storage Temperature

-40º – +85ºC

Humidity operating

Not more than 95% at 40°C

Humidity storage

Not more than 95% at 60°C

INMYS WIKI

NMS-CM3-RK3328-V1

Function diagram

Processor

Ordering information

NMS-CM3-RK3328-4-4I1 4 GBytes DDR4 RAM, 4 GBytes eMMC ROM, Industrial
NMS-CM3-RK3328-4-4C1 4 GBytes DDR4 RAM, 4 GBytes eMMC ROM, Commercial
NMS-CM3-RK3328

Data sheet

CPU manufacturer
RockChip
CPU
RockChip RK3328
Formfactor
Raspberry CM3
