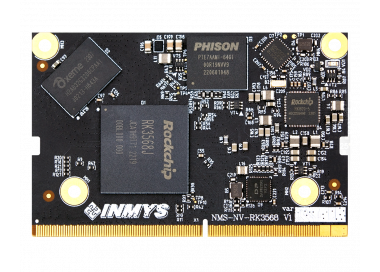

The NMS-NV-RK3568 processor module is based on 64-bit processor RK3568, which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. Having different video input and output interfaces, it is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway and industrial control.
Mechanic |
Form factor |
Nvidia Jetson Nano |
Dimensions (LхH) |
69.6×45 mm |
|
Platfrom |
Processor |
RockChip RK3568 |
GPU |
Mali-G52 EE |
|
NPU |
0.8Tops@INT8 |
|
Core |
4x ARM Cortex A55 frequency up to 2.0 GHz |
|
L1-cache (instruction/data) |
32 KB/32 KB |
|
L3-cache |
512 KB |
|
RAM |
Type |
LPDDR4 |
Size |
2/4/8 GB |
|
Bus |
32 bit |
|
ECC support |
Yes |
|
EEPROM |
Size |
2 Kb |
Interface |
I2C |
|
Unique ID |
EUI-48 |
|
MMC |
Size |
16 GB |
Multimedia |
Supported codecs |
1080p60 H265,VP9 decoder, H.265/H.264, 8M ISP, HDR coder,1080p60 H.264, |
Camera |
4-lane MIPI-CSI Interface |
|
Display |
4-lane MIPI-DSI Interface |
|
Ethernet |
1 Gb |
1 |
BUSes |
CAN |
1 |
I2S |
2 |
|
PCIe 2.0 |
1 |
|
PCIe 3.0 |
2 |
|
UART |
2 + DEBUG |
|
SDIO |
1 |
|
MIPI DSI |
2 |
|
I2C |
4 |
|
SPI |
2 |
|
HDMI |
1 |
|
eDP |
1 |
|
CSI |
2+2 |
|
PWM |
4 |
|
GPIO |
15 |
|
I/O Interfaces |
USB 2.0 |
1 + 1 OTG |
USB 3.0 |
1 |
|
Power |
Voltage |
5V |
Power Consumption, max. |
5W |
|
Power Consumption, typ. |
Depends on the usage |
|
Exploitation |
Operating Temperature |
0º – 70ºC |
Storage Temperature |
-40º – +85ºC |
|
Humidity operating |
Not more than 95% at 40°C |
|
Humidity storage |
Not more than 95% at 60°C |
|
INMYS WIKI |
NMS-NV-RK3568-2-16EI1 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, EEPROM, Industrial |
NMS-NV-RK3568-2-16EC1 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, EEPROM, Commercial |
NMS-NV-RK3568-2-16NI1 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, no EEPROM, Industrial |
NMS-NV-RK3568-2-16NC1 | 2 GBytes LPDDR4 RAM, 16 GBytes eMMC ROM, no EEPROM, Commercial |
Data sheet
